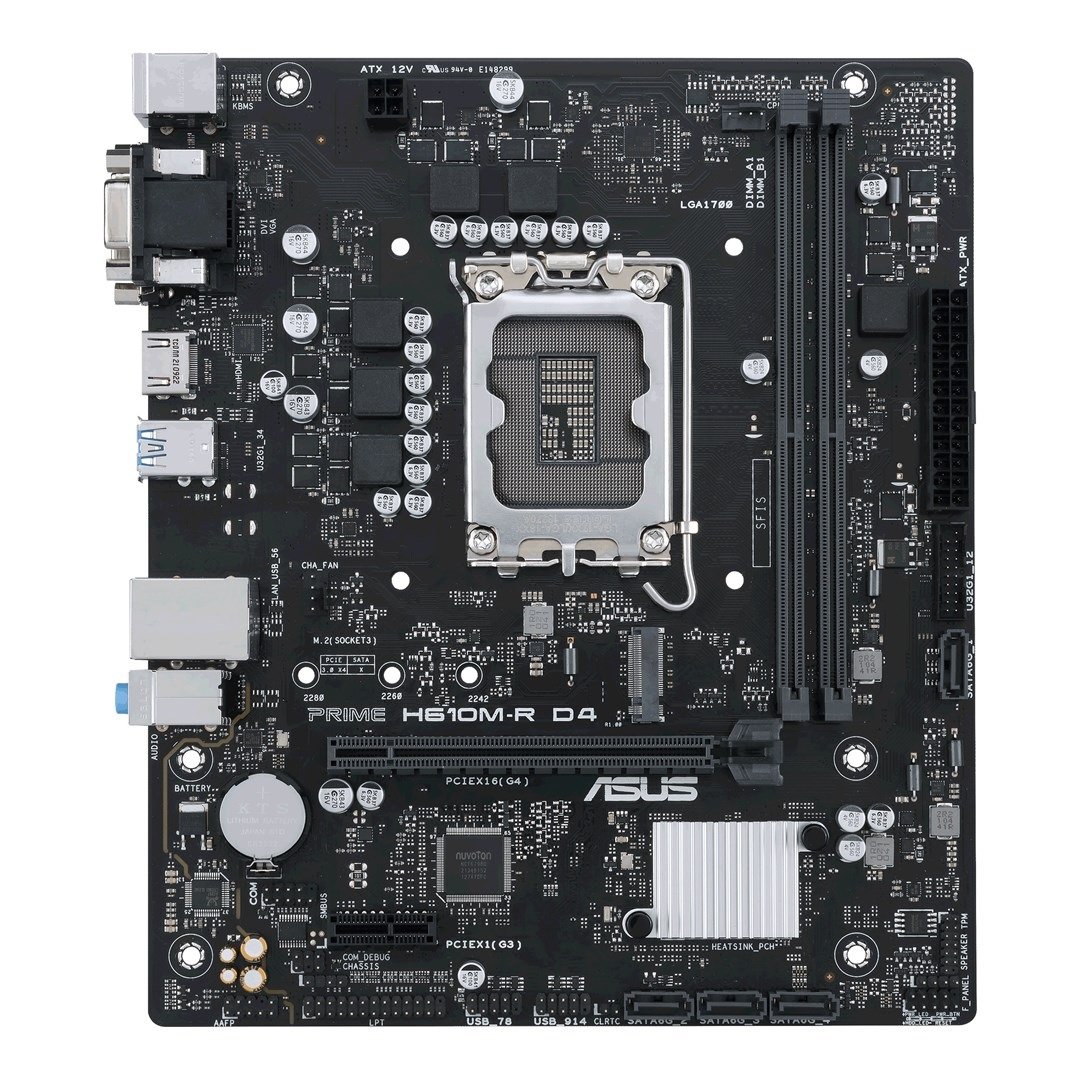

ASUS PRIME H610M-R D4 Intel H610 LGA 1700 micro ATX

Περιγραφή

Processor socket LGA 1700
Compatible processor series Intel Pentium GIntel® Celeron®Intel® Core™ i3Intel® Core™ i5Intel® Core™ i7Intel® Core™ i9Fold
Supported processor sockets LGA 1700

Memory
Supported memory types DDR4-SDRAM
Number of memory slots 2
Memory slots type DIMM
Memory channels Dual-channel
Supported memory clock speeds 2133 MHz240026662800293330003200Fold
Maximum internal memory 64 GB
Unbuffered memory Y

Storage controllers
Supported storage drive types HDD & SSD
Supported storage drive interfaces M.2, SATA III
Number of storage drives supported 5

Graphics
Parallel processing technology support Not supported
Maximum resolution 3840 x 2160 pixels

Internal I/O
USB 2.0 connectors 2
USB 3.2 Gen 1 (3.1 Gen 1) connectors 1
Number of SATA III connectors 4
Audio connector Y
Front panel audio connector Y
ATX Power connector (24-pin) Y
CPU fan connector Y
Number of chassis fan connectors 1
Number of COM connectors 1
TPM connector Y
12V power connector Y

Rear panel I/O ports
USB 2.0 ports quantity 2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 2
Ethernet LAN (RJ-45) ports 1
PS/2 ports quantity 2
VGA (D-Sub) ports quantity 1
HDMI ports quantity 1
HDMI version 2.1
Headphone outputs 3
Microphone in Y
USB connector type USB Type-A

Network
Ethernet LAN Y
Ethernet interface type Gigabit Ethernet
Wake-on-LAN ready Y
Wi-Fi N

Features
Motherboard chipset Intel H610
Audio output channels 7.1 channels
Motherboard form factor micro ATX
Motherboard chipset family Intel
Windows operating systems supported Windows 10 x64Windows 11 x64

Expansion slots
PCI Express x1 (Gen 3.x) slots 1
PCI Express x16 (Gen 4.x) slots 1
Number of M.2 (M) slots 1

BIOS
BIOS type UEFI AMI
Clear CMOS jumper Y
